The following code send a UPD discovery message using WCF
UdpDiscoveryEndpoint theUdpDiscoveryEndpoint = new UdpDiscoveryEndpoint();
theUdpDiscoveryEndpoint.TransportSettings.TimeToLive = 10;
DiscoveryClient theDiscoveryClient = new DiscoveryClient(theUdpDiscoveryEndpoint);
theDiscoveryClient.FindCompleted += new EventHandler<FindCompletedEventArgs>(DiscoveryClient_FindCompleted);
FindCriteria criteria = new FindCriteria(typeof(ICalculatorService));
criteria.Duration = TimeSpan.FromSeconds(5);
theDiscoveryClient.Find(criteria);
The message in the WireShark
I filtered the message by the message source :

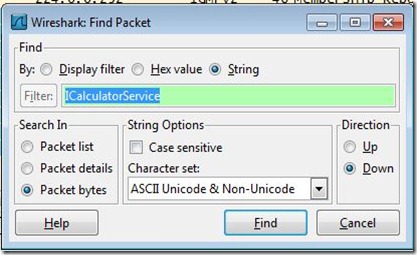

Then I search for the interface name in the messages bytes
Found the string in the following udp multicast message
Copy the message text
And the message is
<s:Envelope xmlns:s="http://www.w3.org/2003/05/soap-envelope" xmlns:a="http://www.w3.org/2005/08/addressing">
<s:Header>
<a:Action s:mustUnderstand="1">http://docs.oasis-open.org/ws-dd/ns/discovery/2009/01/Probe</a:Action>
<a:MessageID>urn:uuid:70767617-f1b5-43c0-8b74-75783e96dde6</a:MessageID>
<a:ReplyTo>
<a:Address>http://www.w3.org/2005/08/addressing/anonymous</a:Address>
</a:ReplyTo>
<a:To s:mustUnderstand="1">urn:docs-oasis-open-org:ws-dd:ns:discovery:2009:01</a:To>
<VsDebuggerCausalityData xmlns="http://schemas.microsoft.com/vstudio/diagnostics/servicemodelsink">uIDPo72LlFawAk1HoE472q1eV4EAAAAAnfvDsoFUzEyRbNiEGHwV+dU9Ss0y1MBGkvXg5GTdSeYACQAA</VsDebuggerCausalityData> </s:Header>
<s:Body>
<Probe xmlns="http://docs.oasis-open.org/ws-dd/ns/discovery/2009/01">
<d:Types xmlns:d="http://docs.oasis-open.org/ws-dd/ns/discovery/2009/01" xmlns:dp0="http://Microsoft.Samples.Discovery">dp0:ICalculatorService</d:Types>
<Duration xmlns="http://schemas.microsoft.com/ws/2008/06/discovery">PT5S</Duration>
</Probe>
</s:Body>
</s:Envelope>
Ignoring the VsDebuggerCausalityData . we can see the probe message along with the time out of 5 seconds .
UdpDiscoveryEndpoint theUdpDiscoveryEndpoint = new UdpDiscoveryEndpoint();
theUdpDiscoveryEndpoint.TransportSettings.TimeToLive = 10;
DiscoveryClient theDiscoveryClient = new DiscoveryClient(theUdpDiscoveryEndpoint);
theDiscoveryClient.FindCompleted += new EventHandler<FindCompletedEventArgs>(DiscoveryClient_FindCompleted);
FindCriteria criteria = new FindCriteria(typeof(ICalculatorService));
criteria.Duration = TimeSpan.FromSeconds(5);
theDiscoveryClient.Find(criteria);
The message in the WireShark
I filtered the message by the message source :
Then I search for the interface name in the messages bytes
Found the string in the following udp multicast message
Copy the message text
And the message is
<s:Envelope xmlns:s="http://www.w3.org/2003/05/soap-envelope" xmlns:a="http://www.w3.org/2005/08/addressing">
<s:Header>
<a:Action s:mustUnderstand="1">http://docs.oasis-open.org/ws-dd/ns/discovery/2009/01/Probe</a:Action>
<a:MessageID>urn:uuid:70767617-f1b5-43c0-8b74-75783e96dde6</a:MessageID>
<a:ReplyTo>
<a:Address>http://www.w3.org/2005/08/addressing/anonymous</a:Address>
</a:ReplyTo>
<a:To s:mustUnderstand="1">urn:docs-oasis-open-org:ws-dd:ns:discovery:2009:01</a:To>
<VsDebuggerCausalityData xmlns="http://schemas.microsoft.com/vstudio/diagnostics/servicemodelsink">uIDPo72LlFawAk1HoE472q1eV4EAAAAAnfvDsoFUzEyRbNiEGHwV+dU9Ss0y1MBGkvXg5GTdSeYACQAA</VsDebuggerCausalityData> </s:Header>
<s:Body>
<Probe xmlns="http://docs.oasis-open.org/ws-dd/ns/discovery/2009/01">
<d:Types xmlns:d="http://docs.oasis-open.org/ws-dd/ns/discovery/2009/01" xmlns:dp0="http://Microsoft.Samples.Discovery">dp0:ICalculatorService</d:Types>
<Duration xmlns="http://schemas.microsoft.com/ws/2008/06/discovery">PT5S</Duration>
</Probe>
</s:Body>
</s:Envelope>
Ignoring the VsDebuggerCausalityData . we can see the probe message along with the time out of 5 seconds .
